YS PNDR96 - 445-465M
Product Features
Power output range：445-465WP 、Maximum conversion efficiency：23.3% 、Positive tolerances：0~+3% 、Maximum System Voltage：1500 VDC
Module characteristics：
Excellent power generation capacity、Excellent anti-LID and anti-PID performance、Excellent temperature coefficient (Pmax): -0.29%/°C、Excellent low-light performance、Excellent quality assurance
Comprehensive product system certification：
IEC 61215,IEC61730、ISO 14001:2015 Environmental Management System、ISO 9001:2015 Quality Management System、ISO 45001：2018 Occupational Health and Safety Management System、IEC 62941：2019 Photovoltaic modules for terrestrial use
A quality system for the manufacture of photovoltaic modules
Product characteristics
| Electrical property parameter（STC） | |||||
| Module Type | YS PNDR96 -445-465M | ||||
| Rated Maximum Power Pmax（Wp) | 445 | 450 | 455 | 460 | 465 |
| Open Circuit Voltage Voc（V) | 34.85 | 35.03 | 35.21 | 35.39 | 35.57 |
| Short Circuit Current Isc（A） | 16.00 | 16.05 | 16.10 | 16.15 | 16.20 |
| Maximum Power Voltage Vmpp（V） | 29.90 | 30.08 | 30.26 | 30.44 | 30.62 |
| Maximum Power Current Impp（A） | 14.89 | 14.97 | 15.05 | 15.13 | 15.21 |
| Component conversion efficiency η ★ | 22.3 | 22.5 | 22.8 | 23.0 | 23.3 |
|
Standard test conditions: irradiance 1000W/m², battery temperature 25℃,atmospheric quality AM1.5 Double-sided rate :80±10(%) ★ Component conversion efficiency η : values have been rounded |
|||||
| Mechanical properties | |||||
| Cell | n-type TOPCon | ||||
| Number of cells | 96片(6x8 +6x8) | ||||

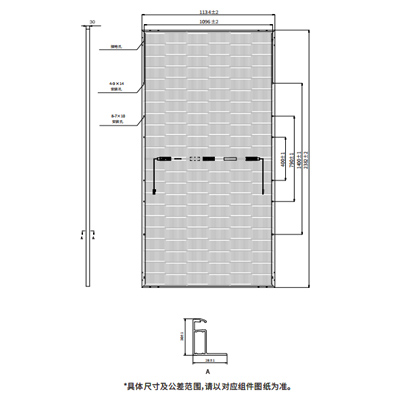

| Module Size | 1762x1134x30mm | ||||
| Module Weight | 22.1 KG | ||||
| Front panel glass | 3.2mm，High transmittance coated glass | ||||
| Backplate | Zhonglai 1500V transparent mesh back film,Or customized | ||||
| Frame | Anodized aluminium alloy, silver-coloured | ||||
| J-BoX | IP68, 1500VDC, 3 bypass diodes | ||||
| Cable | Cathode(+)1200mm,negative electrode(-)1200mm (Connector included)，Or customized | ||||
| Connector | Zhong huan，Or customized | ||||
| Maximum test mechanical load | Front 5400Pa/back 2400Pa（Specify the installation conditions） | ||||
| *The above material information is subject to the actual on-site BOM. | |||||
| Temperature Parameters & Application Environment | |
| NMOT | 44°C±2°C |
| Temperature coefficient of open-circuit voltage（β） | -0.25%/°C |
| Temperature coefficient of short-circuit curren（α） | 0.046%/°C |
| Temperature coefficient of module power | -0.29%/℃ |
| Operating temperature range | -40°C~+85°C |
| Maximum system voltage | 1500VDC |
| Maximum fuse current rating | 30A |
| Limit the reverse current | 30A |
