Product Features
Power output range：695-730WP 、Maximum conversion efficiency：23.5% 、Positive tolerances：0~+3% 、Maximum System Voltage：1500 VDC
Module characteristics：
Excellent power generation capacity、Excellent anti-LID and anti-PID performance、Excellent temperature coefficient (Pmax): -0.29%/°C、Excellent low-light performance、Excellent quality assurance
Comprehensive product system certification：
IEC 61215,IEC61730、ISO 14001:2015 Environmental Management System、ISO 9001:2015 Quality Management System、ISO 45001：2018 Occupational Health and Safety Management System、IEC 62941：2019 Photovoltaic modules for terrestrial use A quality system for the manufacture of photovoltaic modules
Product characteristics
| Electrical property parameter（STC） | ||||||||
| Module Type | YS PNDS132-695-730M | |||||||
| Rated Maximum Power Pmax（Wp) | 695 | 700 | 705 | 710 | 715 | 720 | 725 | 730 |
| Open Circuit Voltage Voc（V) | 48.30 | 48.60 | 48.80 | 49 | 49.20 | 49.4 | 49.6 | 49.8 |
| Short Circuit Current Isc（A） | 18.28 | 18.32 | 18.36 | 18.4 | 18.45 | 18.5 | 18.55 | 18.59 |
| Maximum Power Voltage Vmpp（V） | 40.30 | 40.5 | 40.7 | 40.9 | 41.1 | 41.3 | 41.5 | 41.7 |
| Maximum Power Current Impp（A） | 17.25 | 17.29 | 17.34 | 17.39 | 17.44 | 17.49 | 17.54 | 17.59 |
| Component conversion efficiency η ★ | 22.4 | 22.5 | 22.7 | 22.9 | 23.0 | 23.2 | 23.3 | 23.5 |
|
Standard test conditions: irradiance 1000W/m², battery temperature 25℃,atmospheric quality AM1.5 Double-sided rate :80±10(%) ★ Component conversion efficiency η : values have been rounded |
||||||||
| Mechanical properties | |||||
| Cell | ntypeTOPCon | ||||
| Number of cells | 132Pcs(6x11 + 6x11) | ||||

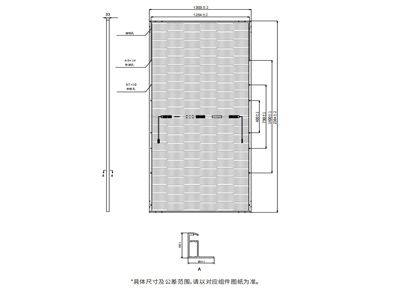

| Module Size | 2384x1303x33mm | ||||
| Module Weight | 32.6 KG | ||||
| Front panel glass | 3.2mm，High transmittance coated glass | ||||
| Backplate | Zhonglai 1500V transparent mesh back film,Or customized | ||||
| Frame | Anodized aluminium alloy, silver-coloured | ||||
| J-BoX | IP68, 1500VDC, 3 bypass diodes | ||||
| Cable | Cathode(+)1200mm,negative electrode(-)1200mm (Connector included)，Or customized | ||||
| Connector | Zhong huan，Or customized | ||||
| Maximum test mechanical load | Front 5400Pa/back 2400Pa（Specify the installation conditions） | ||||
| *The above material information is subject to the actual on-site BOM. | |||||
| Temperature Parameters & Application Environment | |
| NMOT | 44℃±2℃ |
| Temperature coefficient of open-circuit voltage（β） | -0.25%/℃ |
| Temperature coefficient of short-circuit curren（α） | 0.046%/℃ |
| Temperature coefficient of module power | -0.29%/℃ |
| Operating temperature range | -40℃~+85℃ |
| Maximum system voltage | 1500VDC |
| Maximum fuse current rating | 30A |
| Limit the reverse current | 30A |
