YS BNDG144 - 570-605M
Product Features
Power output range：570-605WP 、Maximum conversion efficiency：23.4% 、Positive tolerances：0~+3% 、Maximum System Voltage：1500 VDC
Module characteristics：
Excellent power generation capacity、Excellent anti-LID and anti-PID performance、Excellent temperature coefficient (Pmax): -0.29%/°C、Excellent low-light performance、Excellent quality assurance
Comprehensive product system certification：
IEC 61215,IEC61730、ISO 14001:2015 Environmental Management System、ISO 9001:2015 Quality Management System、ISO 45001：2018 Occupational Health and Safety Management System、IEC 62941：2019 Photovoltaic modules for terrestrial use A quality system for the manufacture of photovoltaic modules
Product characteristics

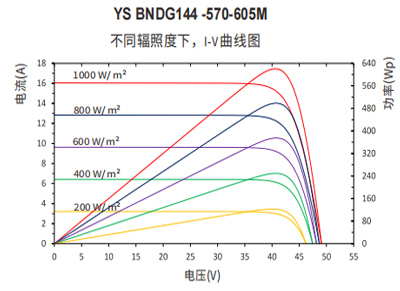

| Electrical property parameter（STC） | ||||||||
| Module Type | YS BNDG144 -570-605M | |||||||
| Rated Maximum Power Pmax（Wp) | 570 | 575 | 580 | 585 | 590 | 595 | 600 | 605 |
| Open Circuit Voltage Voc（V) | 50.85 | 51.00 | 51.15 | 51.30 | 51.45 | 51.60 | 51.75 | 51.9 |
| Short Circuit Current Isc（A） | 14.10 | 14.20 | 14.30 | 14.40 | 14.50 | 14.6 | 14.70 | 14.8 |
| Maximum Power Voltage Vmpp（V） | 42.38 | 42.5 | 42.63 | 42.75 | 42.88 | 43 | 43.12 | 43.24 |
| Maximum Power Current Impp（A） | 13.45 | 13.53 | 13.61 | 13.68 | 13.76 | 13.84 | 13.92 | 14 |
| Component conversion efficiency η ★ | 22.1 | 22.3 | 22.5 | 22.6 | 22.8 | 23.0 | 23.2 | 23.4 |
|
Standard test conditions: irradiance 1000W/m², battery temperature 25℃,atmospheric quality AM1.5 Double-sided rate :80±10(%) ★ Component conversion efficiency η : values have been rounded |
||||||||
| Mechanical properties | |||||
| Cell | ntypeTOPCon | ||||
| Number of cells | 144Pcs(6x12 + 6x12) | ||||

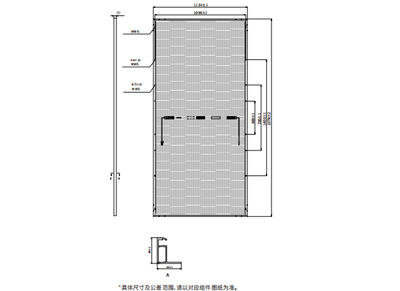

| Module Size | 2278x1134x30mm | ||||
| Module Weight | 31 KG | ||||
| Front panel glass | 2.0mm，High transmittance coated glass | ||||
| Backplate | 2.0mm，Semi-tempered glass | ||||
| Frame | Anodized aluminium alloy, silver-coloured | ||||
| J-BoX | IP68, 1500VDC, 3 bypass diodes | ||||
| Cable | Cathode(+)1200mm,negative electrode(-)1200mm (Connector included)，Or customized | ||||
| Connector | Zhong huan，Or customized | ||||
| Maximum test mechanical load | Front 5400Pa/back 2400Pa（Specify the installation conditions） | ||||
| *The above material information is subject to the actual on-site BOM. | |||||

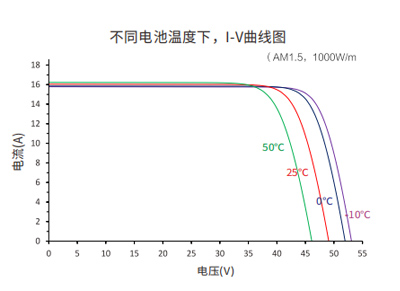

| Temperature Parameters & Application Environment | |
| NMOT | 44℃±2℃ |
| Temperature coefficient of open-circuit voltage（β） | -0.25%/℃ |
| Temperature coefficient of short-circuit curren（α） | 0.046%/℃ |
| Temperature coefficient of module power | -0.29%/℃ |
| Operating temperature range | -40℃~+85℃ |
| Maximum system voltage | 1500VDC |
| Maximum fuse current rating | 30A |
| Limit the reverse current | 30A |
